Stella™ Help Guide

Section 1: Stella™ Introduction

Welcome to Stella™ by STAAR Surgical™. This interactive Help Guide will provide an overview of how to use Stella™ for assistance with calculating and ordering EVO Spheric and Toric lenses.

Stella™ provides you with:

  • 24-hour online access to the STAAR EVO ICL calculator tool
  • Easy ICL ordering process
  • Immediate lens inventory viewing and real-time ordering
  • Recommended EVO ICL powers and lengths based on your patient’s data (flexibility to choose the EVO ICL lens for your patient)
  • Implantation Orientation Diagram (IOD) or Spherical Implantation Diagram (SID) available to assist with your surgical planning

Please note the calculator in Stella™ was improved to enhance user experience, but the calculator algorithm remains the same and will return the same calculation results as OCOS.

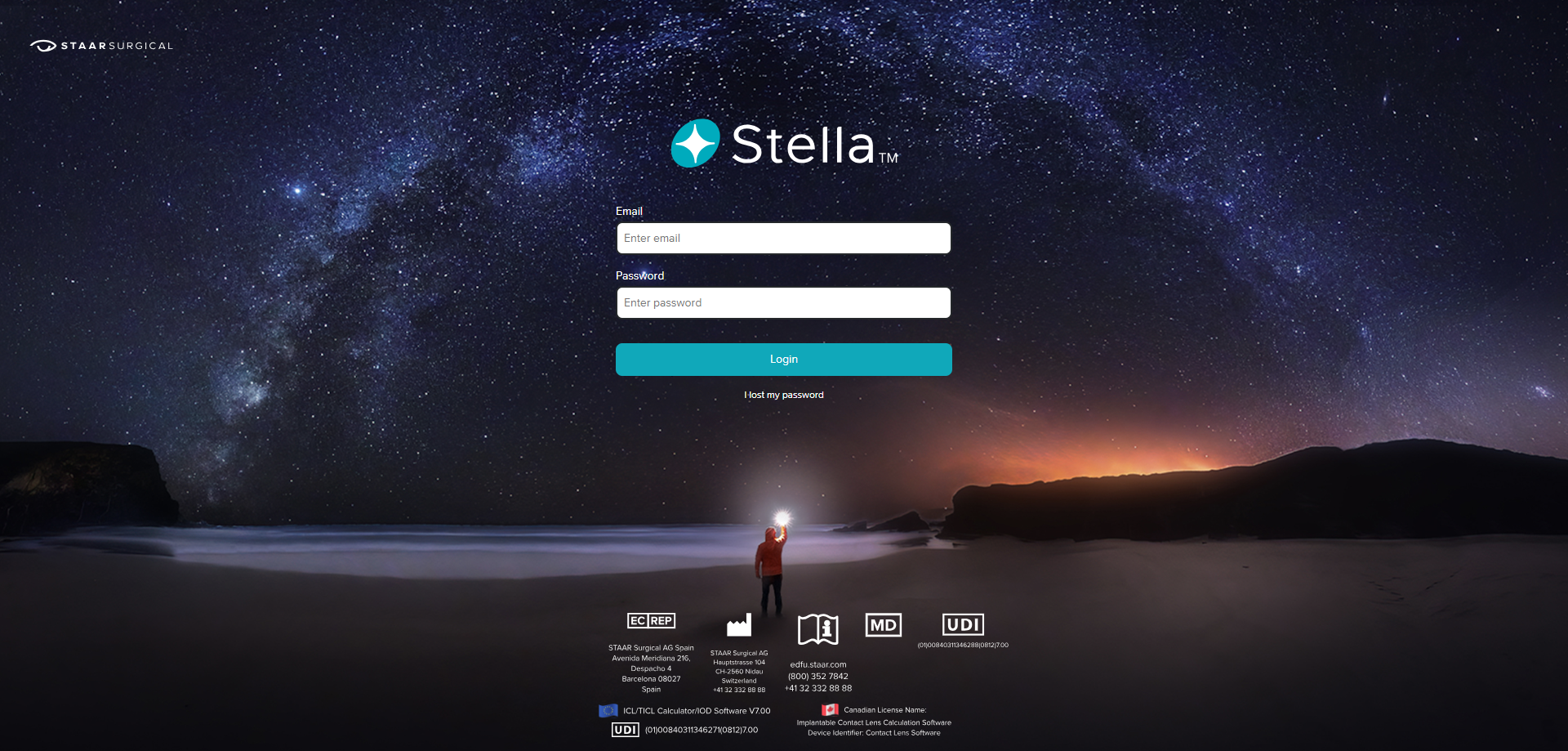

Login

As a surgeon, certification is required to access this software. Technicians or clinic staff can also obtain a login to this software, provided they are linked to a certified surgeon.

Login information will be provided by the STAAR Surgical™ Customer Service Department (customerservice@staar.com) after you complete the required training videos on STAAR Education Center.

alt_text

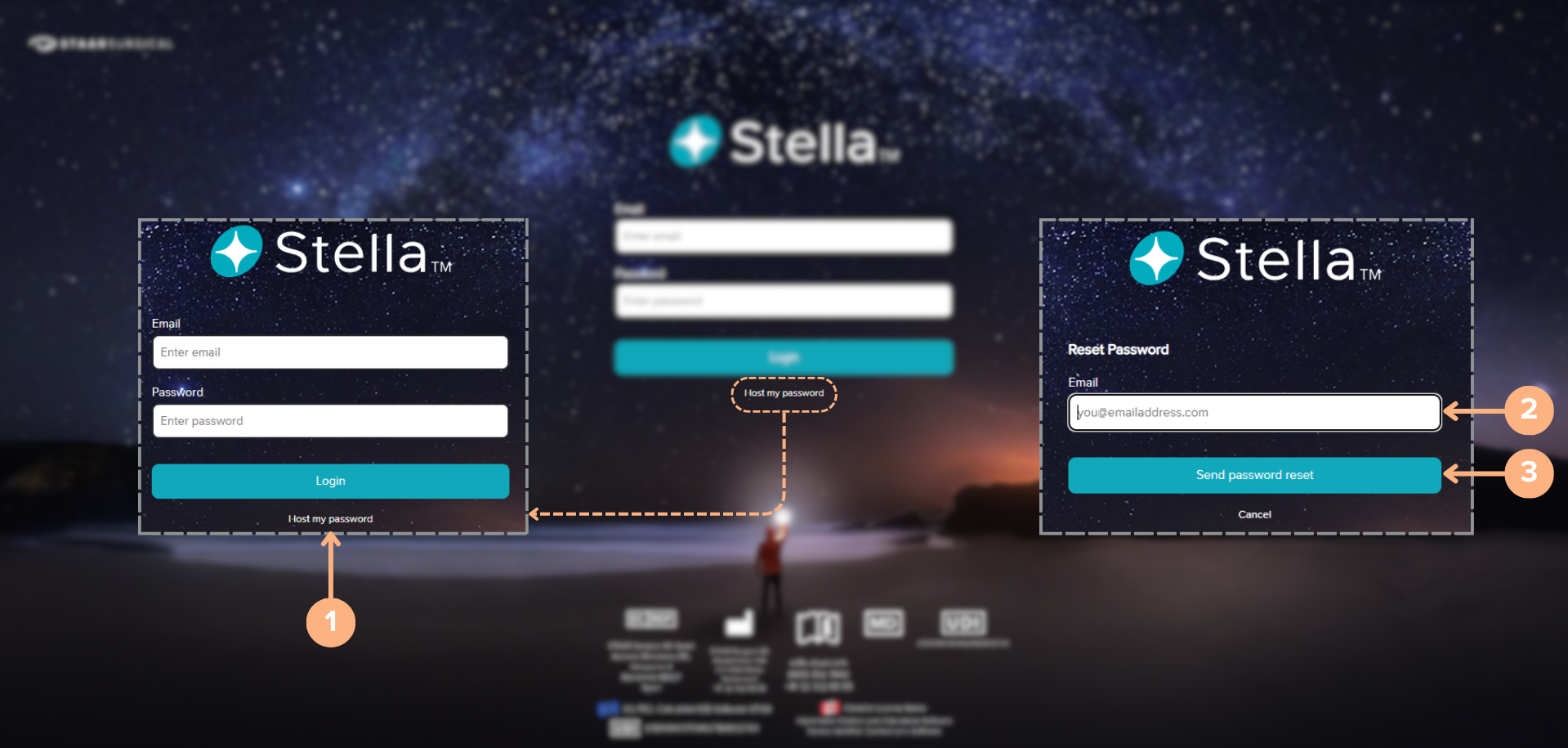

Forgot Password

If you forget your password:

  1. Click I lost my password on the login screen to initiate a password reset
  2. Enter your email address
  3. Click the Send password reset button

An email will be sent to you with instructions on how to reset your password. Check your inbox, and if you don’t see it, be sure to check your spam folder.

alt_text

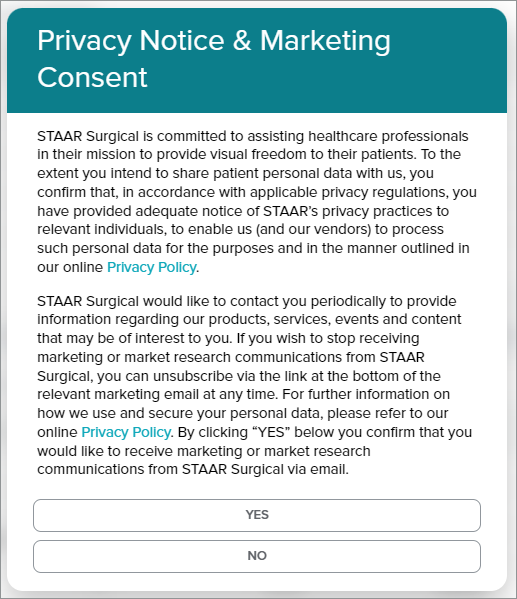

When you first log in to your account, the Privacy & Marketing Consent message will appear. Compliance with the Privacy Notice & Marketing Consent is required to access Stella™. Once you have read and agreed to the message, you can proceed to the site. This message will only appear once.

alt_text

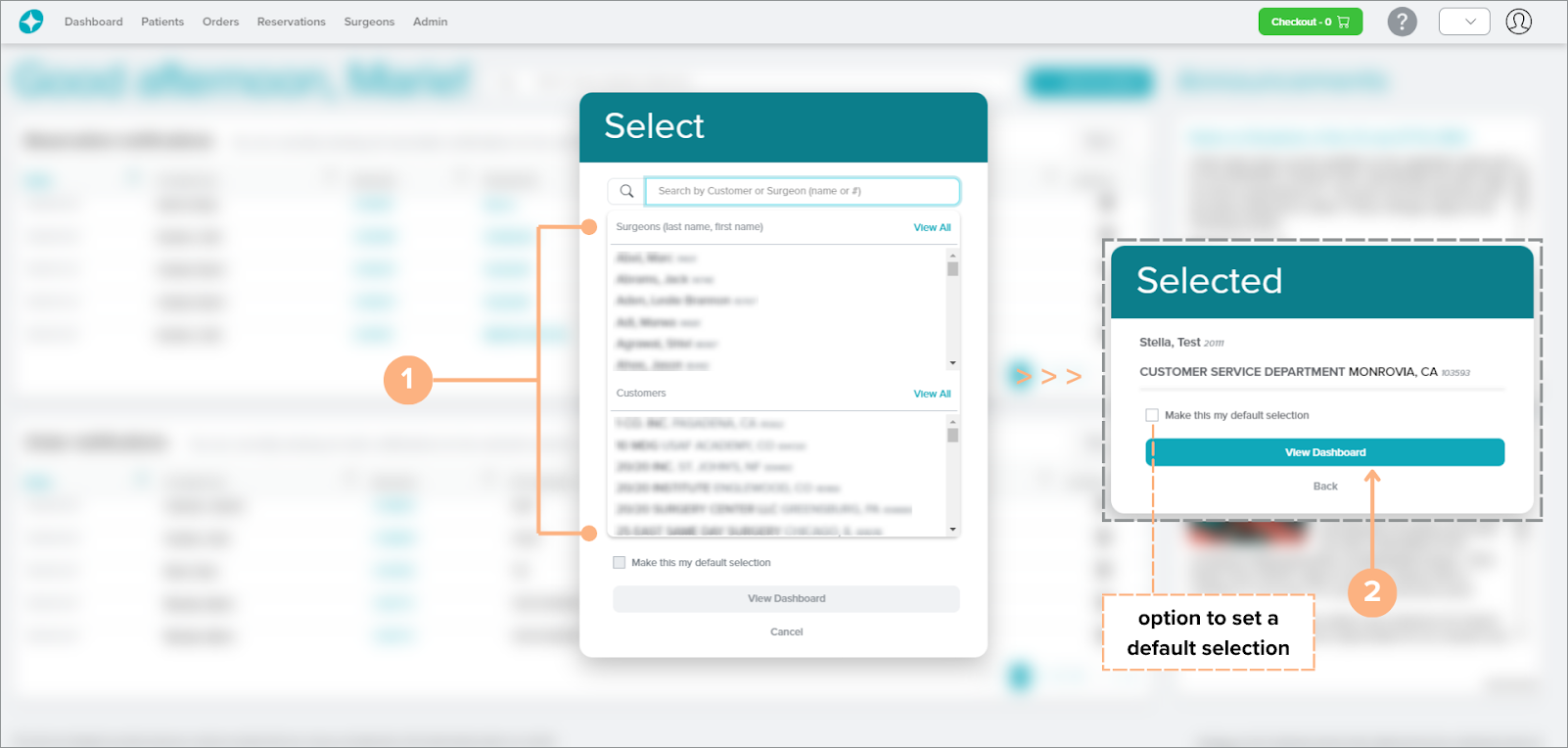

Selecting Doctor or Customer Account

For accounts with multiple doctors or customers, you can select the desired surgeon or customer on the Select menu. To select an account to view:

  1. Click on the surgeon or customer name from the list
  2. Click View Dashboard

You have the option to make this selection your default account by clicking on the check-box for Make this my default selection. This selection can always be changed by unchecking the box for Make this my default selection of the account or by selecting a different doctor or customer from the list.

alt_text

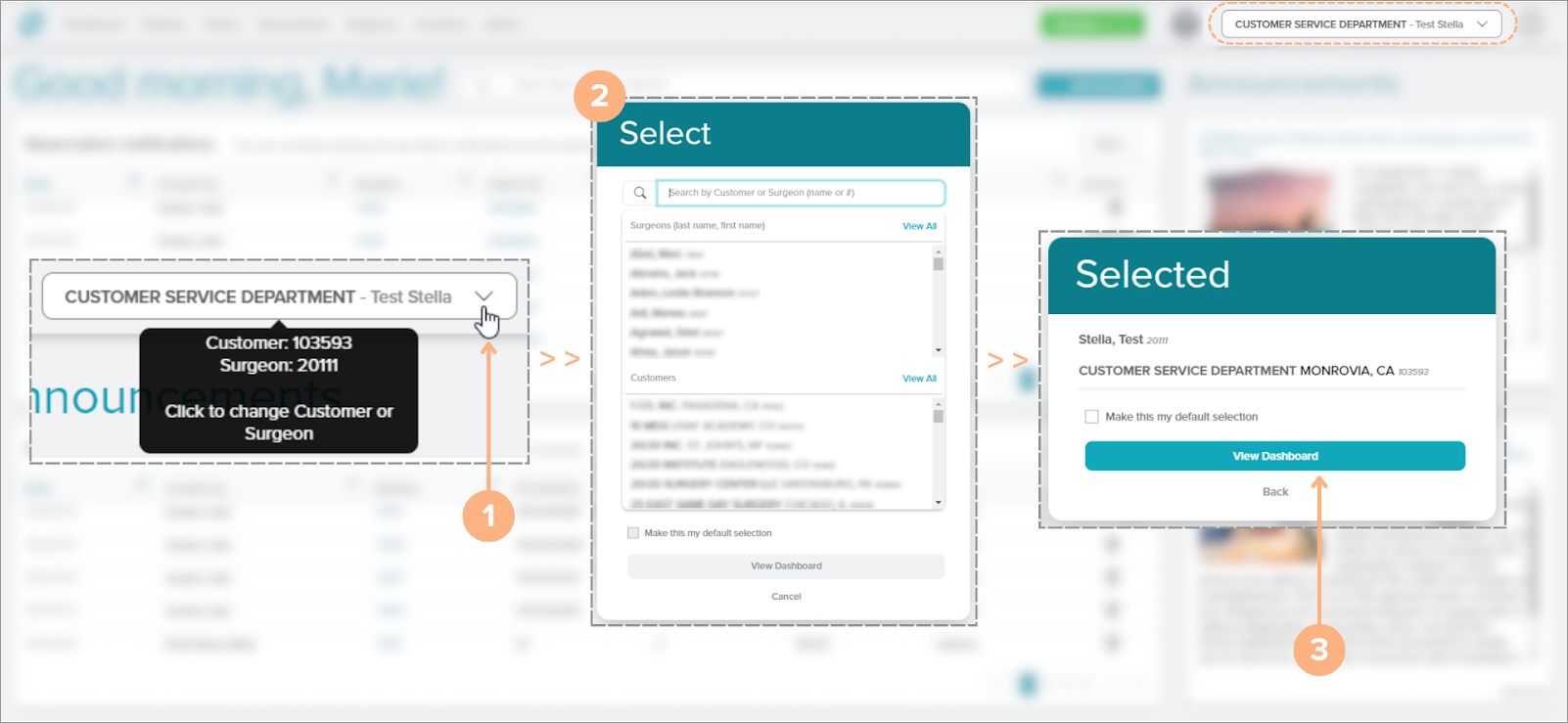

Once you are logged in with your selected account, this selection can also be easily changed using the change customer or surgeon account button. To quickly switch accounts from the navigation bar:

  1. Click the** change Customer or Surgeon account** button
  2. Click on the surgeon or customer name from the list
  3. Click View Dashboard

alt_text

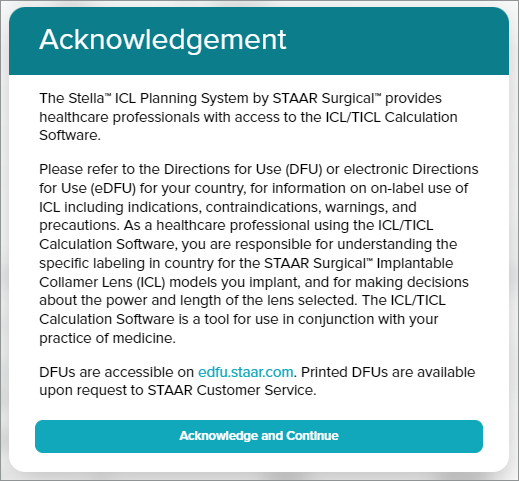

Acknowledgement

The Acknowledgement message is a disclaimer for the Stella™ ICL Planning System. Please read the message carefully and click Acknowledge and Continue when finished. This message will need to be acknowledged each time a user logs in to be able to access the site.

alt_text

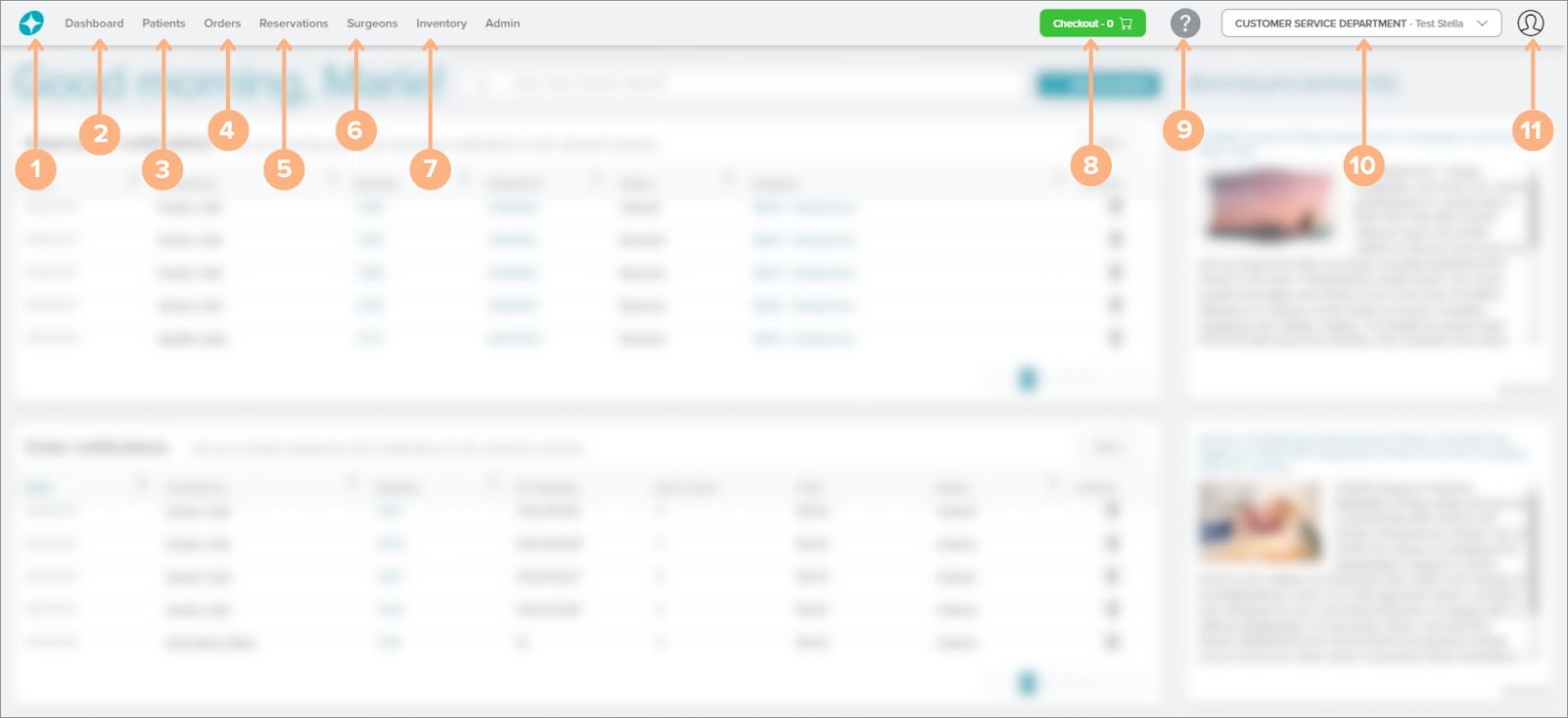

Stella™ Navigation Bar

The navigation bar at the top of the page will help you access the different features of Stella™. Available buttons on the navigation bar are:

1. Stella™ logo: redirects the user to the Dashboard
2. Dashboard: contains your selected surgeon/customer’s reservation notifications, order notifications, and announcements
3. Patients: contains a list of your selected surgeon/customer’s active patient activities
4. Orders: contains a list of your selected surgeon/customer’s orders
5. Reservations: contains a list of your selected surgeon/customer’s reservations
6. Surgeons: contains a list of surgeons under your account
7. Inventory (if applicable): contains your Spheric Consignment Inventory
8. Checkout: access to your current shopping cart
9. Help: access to the Help Guide which navigates the Stella™ ICL Planning System and Calculator
10. Change customer or surgeon: select a different customer account or surgeon to view
11. Sign Out: sign out of the current account

alt_text

Refresh Button Important Note

As you navigate Stella™, please do not use the refresh button on the browser, but always follow the prompt in the software to proceed. An unnecessary browser refresh may clear unsaved data or disrupt the calculator workflow.

Customer Service Contact Information

Email: customerservice@staar.com

Phone Number: 800 352 7842

Directions For Use

Access the STAAR Surgical™ eDFU website at edfu.staar.comopen in new window.
